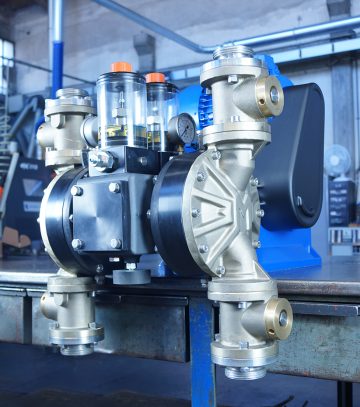

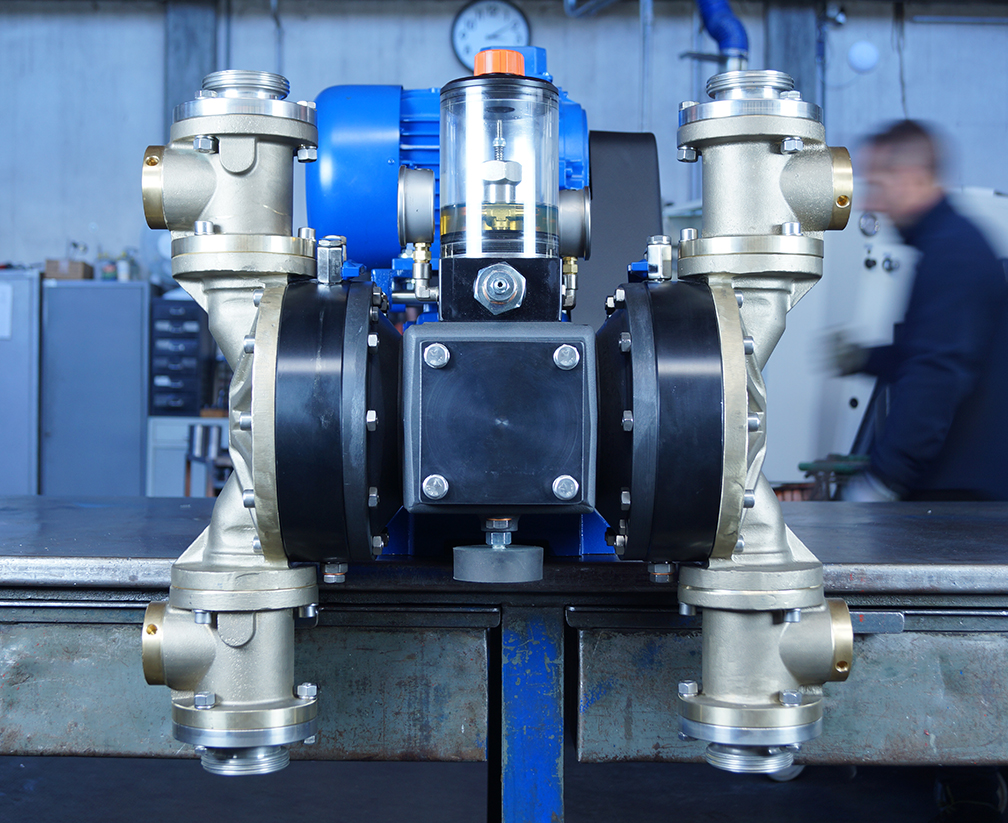

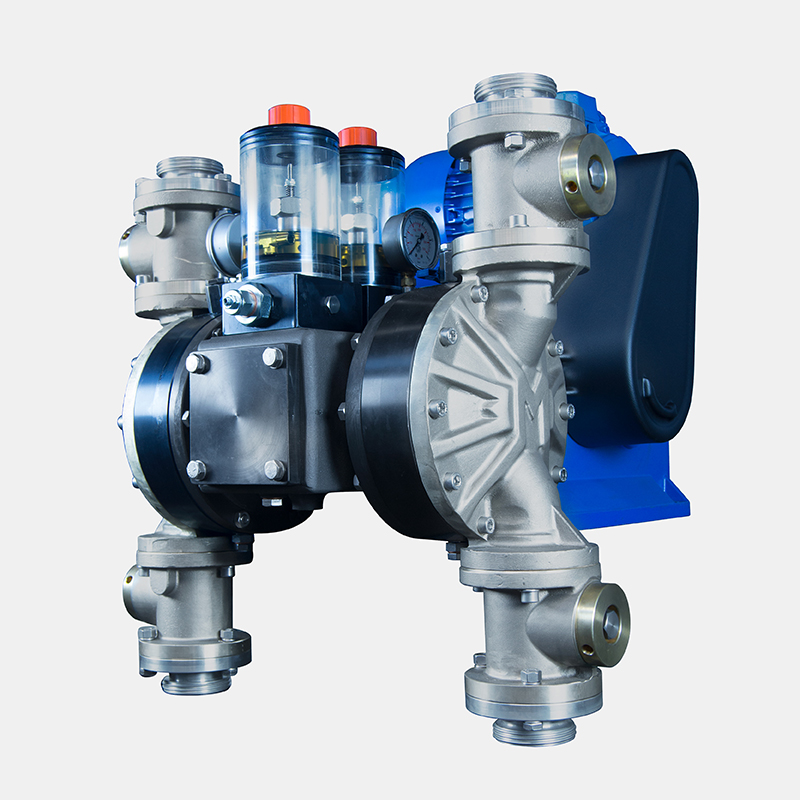

Double Membrane – Double Effect pump MC-36MD

out of 5

brevettoThe MC-MD Double Membrane pumps, drastically reducing the risks of breakage or damage of the membrane, allows for an increase in the useful life of the device and reduced needs of maintenance in presence of abrasive products. The natural evolution of the MC pumps range has led to the introduction of the new Double Membrane – Double Effect MC-MDE pumps, that ensure high flow rate and homogeneity of the flow in a compact and proportionate design.

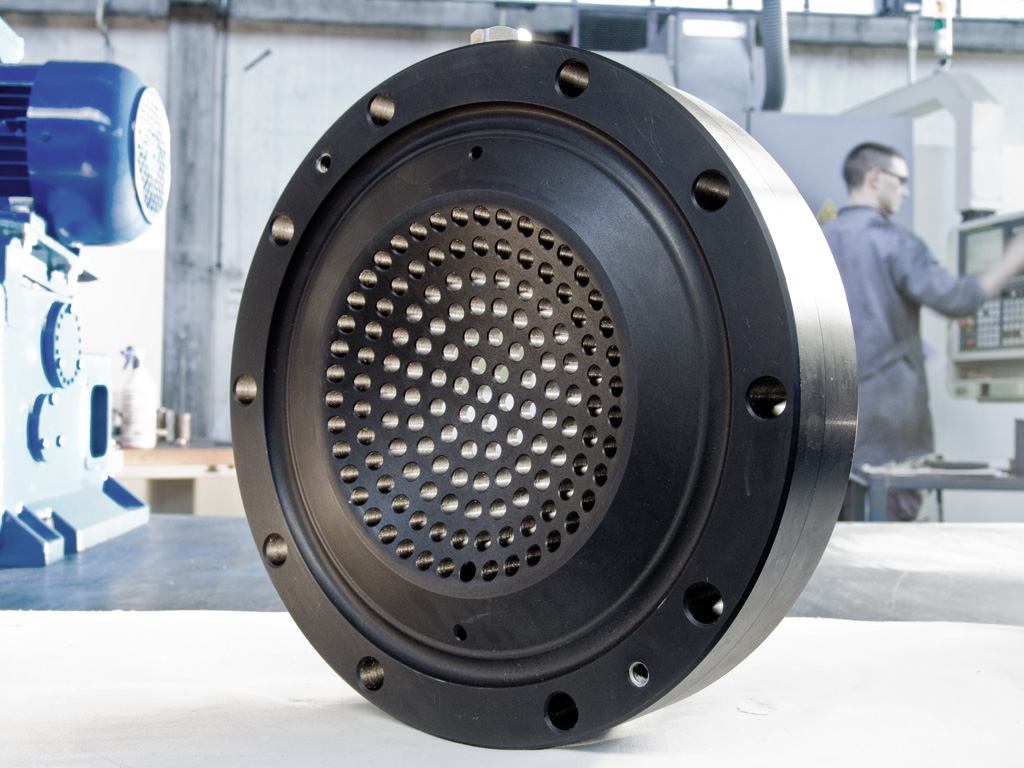

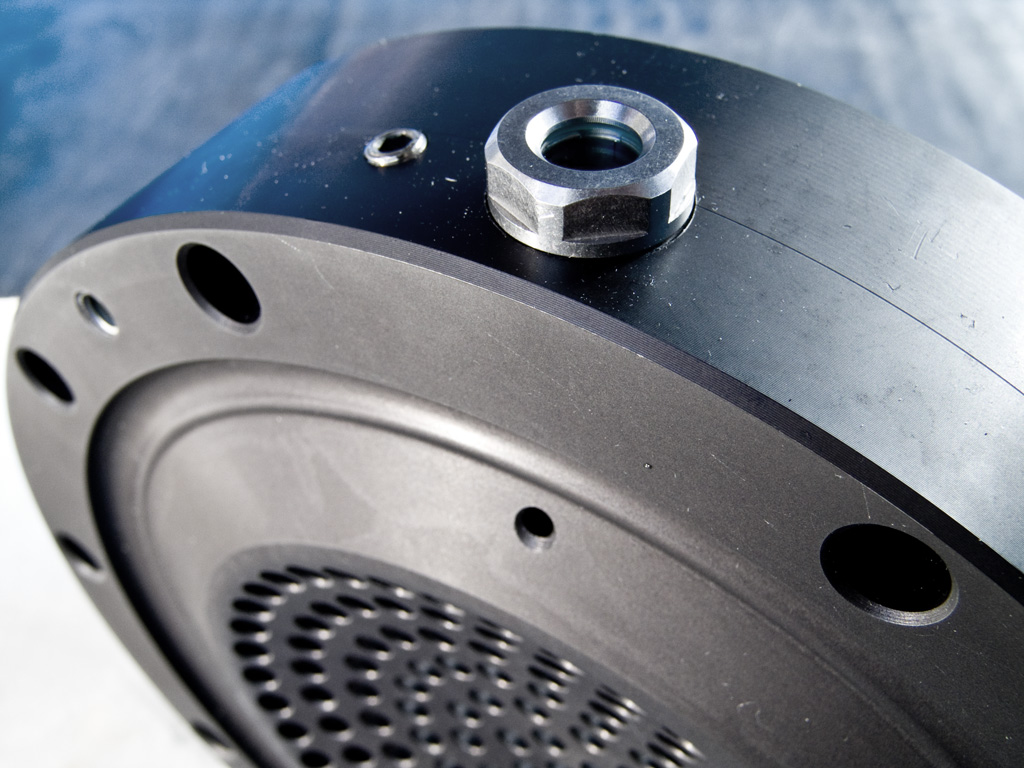

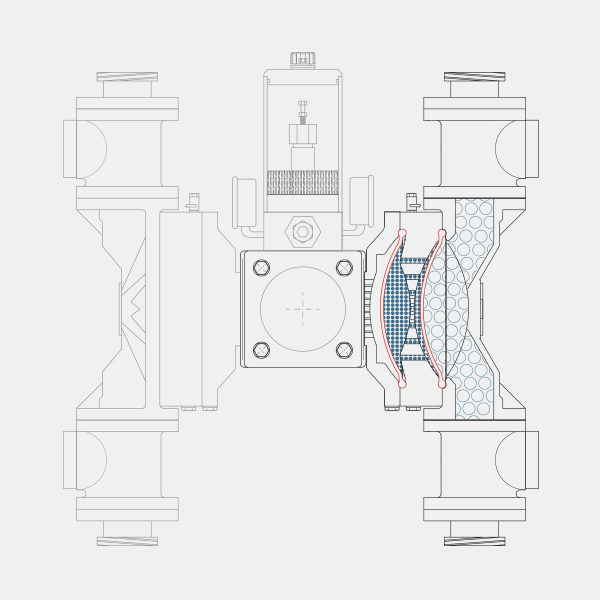

The Double Membrane – Double Effect MC-MDE pumps provide, at a preset level, the control of the stresses of the membranes. The connection between the two membranes through the interposed fluid, restricts the deformation ensuring therefore minimal propensity to rupture. Maintaining the optimum level of the operating pressure is guaranteed by the use of the maximum-pressure valve in cooperation with the reset valve.

The Double Membrane – Double Effect MC-MDE pumps provide, at a preset level, the control of the stresses of the membranes. The connection between the two membranes through the interposed fluid, restricts the deformation ensuring therefore minimal propensity to rupture.

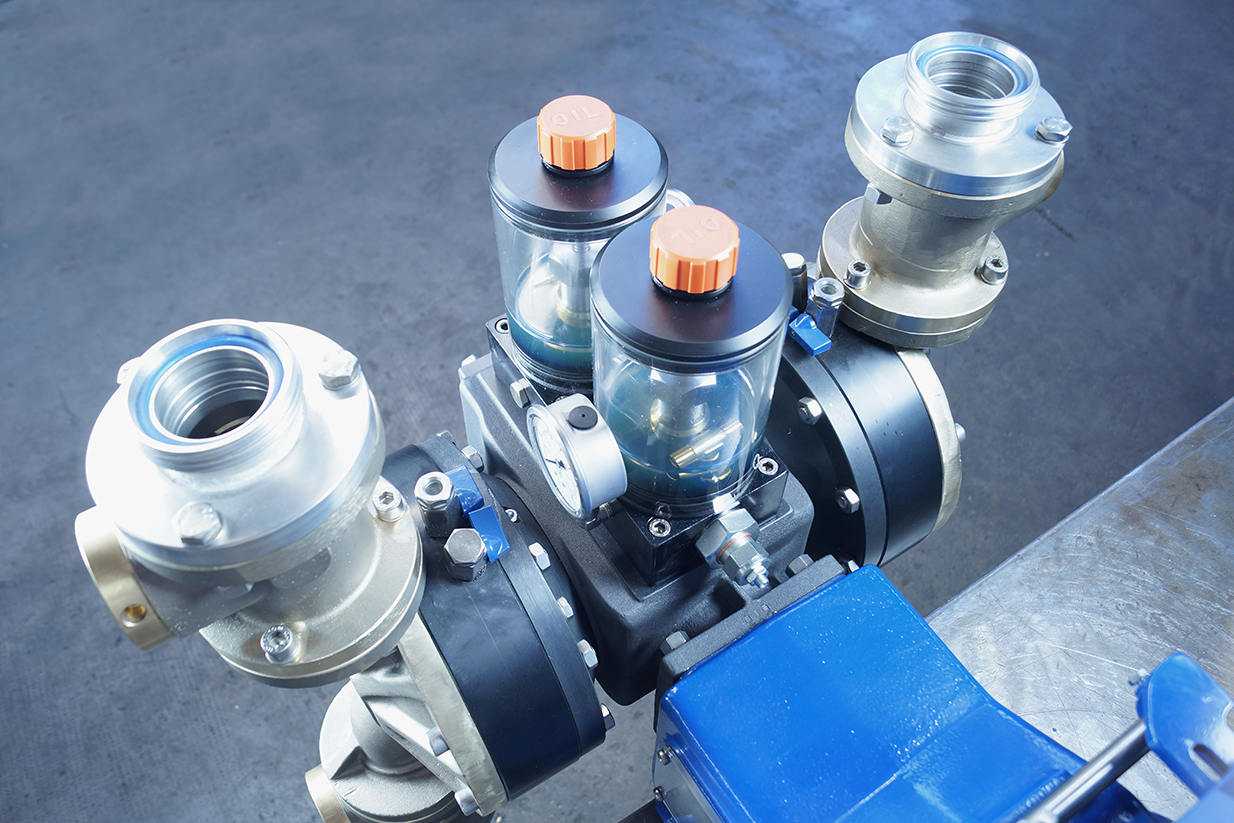

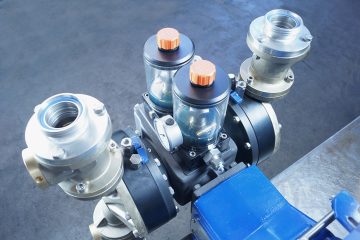

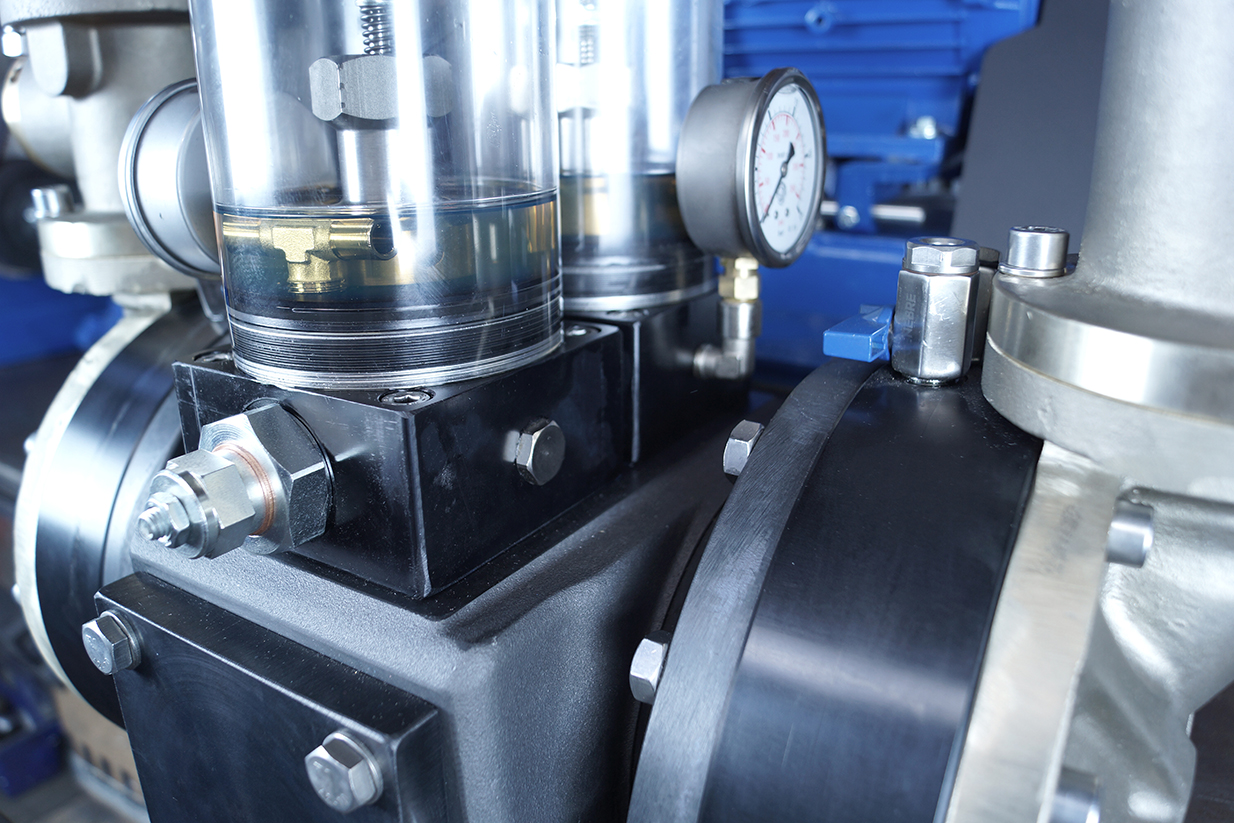

Maintaining the optimum level of the operating pressure is guaranteed by the use of the maximum-pressure valve in cooperation with the reset valve.

Characteristics

  • Exercise pressure (bar): 12

  • Maximum pressure (bar): 15

  • Piston diameter (mm): 75

  • Delivery (litres/hour): 3.600

  • Absorbed power (kW): 2,2
